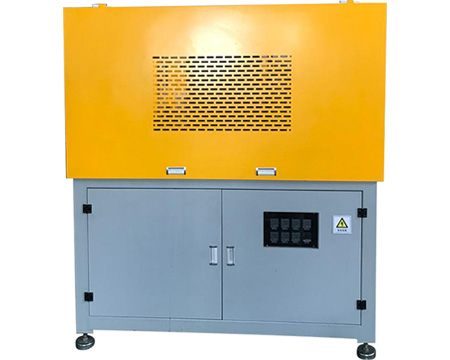

Auto Blow Molding Machine

LG2C2L/F(2-Cavity)
LG4C2L/F(4-Cavity)
LG6C1L/F(6-Cavity)
LG1C5L/F(1-Cavity)
LG2C5L/F(2-Cavity)
○Automatic preform input and ready bottle output system.
○Machine adopt with the overall structure of super-standard anti-vibration design,high-speed operation state of the machine will shake down to a minimum,and ensure that the life of components using will not affected from mechanical vibrations.
○Machine adopt modular assembly methods,greatly decrease the local amendments due to technological improvements when the machine is on processing.
○In order to ensure the rate of fonished products,the oven which used in measuring the performance of the machine,sit in a very important position.The structure oven adopt the intemational most advanced energy-saving technology of infrared radiation heating,temperature control with automatic negative feedback,closed-loop regulation model.



△Technical Specifications
an end item
General Information
LG2C2L/F
LG4C2L/F
LG6C1L/F
LG2C5L/F
LG1C5L/F

Container
Theoretical output
Max container volume
Max neck diameter
Max container diameter
Max container height
Number of cavity
2500 pcs/hr
1.5L
45mm
100mm
340mm
2 Cavity
4000pcs/hr
1.5L
45mm
100mm
340mm
4Cavity
6000pcs/hr
0.6L
45mm
67mm
270mm
6Cavity
1200pcs/hr
5L
50mm
175mm
350mm
2Cavity
750pcs/hr
5L
50mm
175mm
350mm
1Cavity

Electrical System
Total power
Use power
25kw
15kw
35kw
21kw
45kw
27kw
40kw
25kw
25kw
15kw

Air System
Working pressure
Low pressure consuming
Blowing pressure
High pressure consuming
1.0 Map
1400L/min
≤3.5Mpa
1200L/min
1.0 Map
1600L/min
≤3.5Mpa
2400L/min
1.0 Map
1600L/min
≤3.5Mpa
3600L/min
1.0 Map
1600L/min
≤3.5Mpa
2400L/min
1.0 Map
1400L/min
≤3.5Mpa
1200L/min

Chiller Water
Operating pressure
Temperature
Flow rate
0.3-0.5Mpa
10-12℃
30L/min
0.3-0.5Mpa
10-12℃
45L/min
0.3-0.5Mpa
10-12℃
75L/min
0.3-0.5Mpa
10-12℃
45L/min
0.3-0.5Mpa
10-12℃
30L/min

Machine
Machine dimension
Machine weight
Feeding Machine dimension
Feeding Machine weight
1.9×1.6×2.0m
1300kg
2.0×1.0×2.0m
200kgs
2.5×2.0×2.0m
2200kg
2.0×1.0×2.0m
220kgs
4.2×2.0×2.0m
4200kg
2.0×1.2×2.0m
/2.1×0.9×2.0m
200kgs
2.5×2.0×2.0m
1900kg
2.0×1.0×2.0m
200kgs
2.0×1.4×2.0m
1600kg
2.0×1.0×2.0m
200kgs
·Actual discharges depend on bottle shape and preform qualification.
·The above technical parameters are subject to continual update,please rake the real product as the base.
