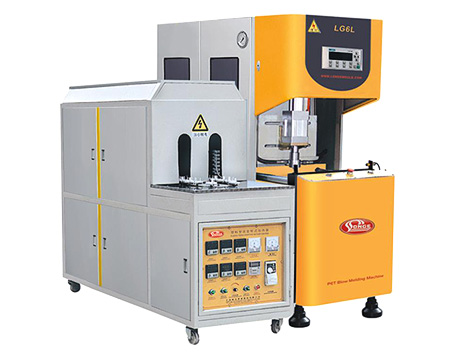

Sami automatic blow molding machine

LG-6L LG-20L
○Adopt the new type double bend arm and four pull rod-clamping structure(won the patent).cross direction;middle mould board is move parallel;the distance between two mold board is adjusted by the chain wheel,Thus,the clamping force is very strong.
○The machine frame is produced by the whole complete casting bottom,so that the machine are firm and running stable.
○Adopt the straight slide way,reduce the friction and lengthen the life of the machine.
○Double start working button,which is designed for avoiding the injury.
○Power saving design that can increase your profits.
○The single direction of pre-from placing and bottle picking,which increase the output.
○Segregate type air controlling system,which is designed for avoiding waste pollution.
○The stretching air cylinder is adjusted parallel from front to back,from left to right freely by regulator.

Technical Specifications
General Information
LG3L
LG3L-2C
LG-6L
LG20L
LG1L-2C
LG3LR-2C
Heating capacity
1500 pcs/hr
2000pcs/hr 1000pcs/hr
450pcs/hr 1000pcs/hr
120pcs/hr
1500pcs/hr
1300pcs/hr
Theoretial output
3.5kw
15kw
12kw
30kw
35kw
15kw
Max bottle volume
2L(1出2)
2.0L(1出2) 4.0L(1出1)
8L(1出1)3L(1出2)
30L
1.5L(1出2)
1.5L(1出2)
Blowing pressure
≤3.0Mpa
≤3.5Mpa
≤3.5Mpa
≤3.5Mpa
≤3.0Mpa
≤3.5Mpa
Motion pressure
≤1.0Mpa
≤1.0Mpa
≤1.0Mpa
≤1.0Mpa
≤1.0Mpa
≤1.0Mpa
Max diameter×height
Φ140×H340mm
Φ140×H340mm
Φ180×H370mm
Φ280×H450mm
Φ90×H320mm
Φ90×H320mm
Mould thickness
120-220mm
120-220mm
160-260mm
300-400mm
120-220mm
120-220mm
Weight
700kg
1500kg
1000kg
1500kg
1500kg
1500kg
Main machine
1400×600×1600mm
1400×600×1600mm×2
1700×600×1700mm
2200×700×2250mm
1400×600×1700mm×2
1400×600×1700mm×2
Heater
880×520×900mm
2000×600×1450mm
2000×650×1450mm
2200×700×1700×mm
4500×600×1700mm
2000×680×1450mm
